  • SHANGHAI FANGLING FLMC-F2300B cnc plasma cutting controller

SHANGHAI FANGLING FLMC-F2300B cnc plasma cutting controller

stars, based on ( 0 ) reviews
$480.00now$380.00 set
Quantity Price
1+ $380.00
5+ $361.00
94 items available

Product Tag:

hot sale

High stability FLMC-F2300B cnc plasma cutting controller




Model: FLSK-F2300B  FLMC-F2300B

Made in china.

Low cost CNC Plasma cutting machine used CNC controller.



Work Condition

Working Temperature, 0~50. Relative Humidity, 5~95%.

Operation Voltage: DC +24V.

The controller should be installed in a cab which can provide protection from powder.

The controller would be better used in the situation without high voltage radiation.



Configuration
  1. Monitor: 10.4 inch 800*480, high definition 16 million colors and high brightness LCD
  2. Memory: 64M SDRAM
  3. Program space available for user: 256M electronic hard disk
  4. System master frequency: 400MHz
  5. USBUSB 1.1 front interface, at least 16GB U disk supportable
  6. Keyboard: electronic PCB foil keyboard
  7. Chassis: full-steel structure completely shielded which defends electromagnetic radiation, interference and static electricity
System Information

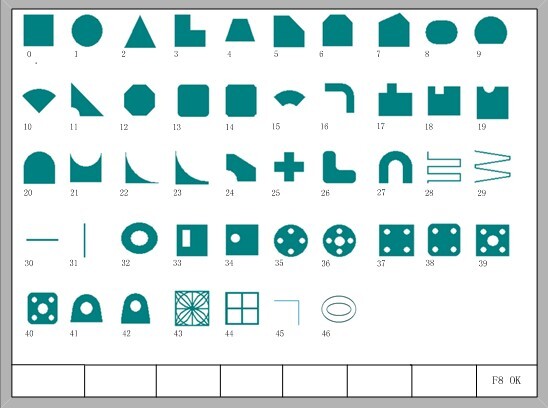

  • 45 categories different graphics (including grid pattern), chip part and hole part are alternative.
  • Graphics have some operations such as Proportion, Rotate, Mirror.
  • Graphics can be arrayed in matrix, interaction, stacked modes
  • According to plate thickness, the cutting speed is automatically restricted by a speed limit in the corner, effectively preventing over burn.
  • metric system/ imperia system switch
  • Steel plate can be adjusted according to any steel side.
  • Coordinate system can be customized to support the two-dimensional coordinates of all eight kinds.
  • All input and output port type and the number can be customized (normally open or normally closed)
  • system and parameters backup, update system online
  • Chinese / English (including Japanese, Russian, French and other languages )file system and menu can be switched only by one key.
  • select row and column manually.
  • support edge cutting and offset cutting.
  • Automatically memorize the working situation and the last cutting point when power off.

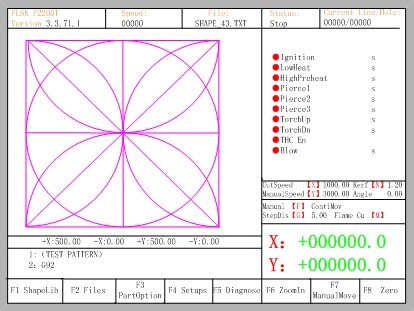

  • Dynamic/static illustration of the process, graphics zoom in / out, dynamically tracking cut-off point under zooming state.
  • support artgrave, TYPEIII, PM2000 cam software
  • set up different administration authority to and the corresponding password to safeguard the interests of managers.



Technical Indicator

1) Control Axis2 axis linkage(3 axis customizable)

2) Control accuracy+/-0.001mm

3) Coordinate range+/- 99999.99mm

4) Max pulses200 kHz.   Max speed15,000 mm/m

5) Max lines of code150,000lines

6) Max size of single code file4M

7) Time resolution10ms

8) Working Voltage: DC +24V direct-current power inputpower > 80W

9) Working Temperature: -10℃~+60℃. Relative Humidity, 0~95%.

10) Max power of drive arc THC motor: 45W (suitable for models with T). if need more power, can select maximum value: 200W.



System Interface

 a) 15 pins SMA Male interface of 2 axes of motor drive.

 b) 25 pins SMA Female interface of 16 channels optoelectronic isolation output ports max back flow current 300mA.

 c) 25 pins SMA Male interface of 16 channels optoelectronic isolation input portsmax output current 300mA.

 d) USB interface on the front panel, for the convenience of transmitting cutting code.

 e) Extend IO input/output ports, PWM input ports, analog input ports.



      The following three interfaces are only suitable for models with T:

 f) Selection of partial pressure proportion of arc input: 1:50 or 1:100

 g) 5 cores THC motor output and limit input ports.

 h) 7 cores arc pressure and position input port, arcing signal output port.



 F2300 A/B/T Hardware Configuration

 1. Monitor: 10.4 inch 800*600, high definition 16 million colors and high brightness LCD

 2. Memory: 64M SDRAM

 3. Program space available for user: 256M electronic hard disk

 4. System master frequency: 400MHz

 5. USB: USB 1.1 front interface, at least 16GB U disk supportable

 6. Keyboard: electronic PCB foil keyboard

 7. Chassis: full-steel structure completely shielded which defends electromagnetic radiation, interference and static electricity




Cutting Samples
